JTR系列斜齒輪減速電機底腳安裝外形尺寸 |
 |
| |
詳細介紹： |
發布時間：2007/8/11 8:30:16 |
|
| |

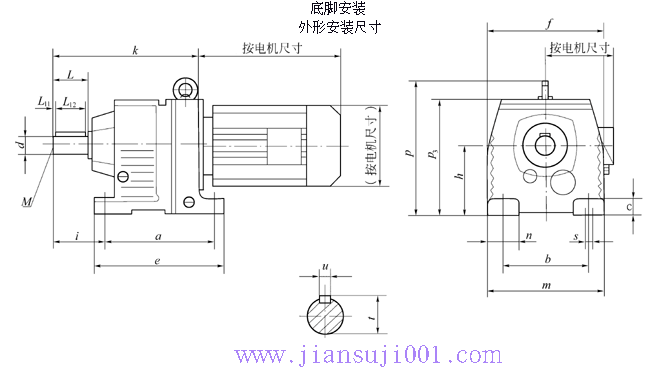

JTR系列斜齒輪減速電機底腳安裝外形尺寸
|
型號 |
a |
b |
c |
e |
f |
h |
i |
k |
m |
n |
p |
p3 |
s |
d |
L |
L11 |
L12 |
t |
u |
M |
|
JTR27 |
130 |
110 |
18 |
152 |
151 |
90 |
75 |
193 |
151 |
32 |
- |
147 |
9 |
25k6 |
50 |
3.5 |
40 |
28 |
8 |
M10 |
|
JTR37 |
130 |
110 |
18 |
160 |
161 |
90 |
75 |
201 |
145 |
35 |
- |
151 |
9 |
25k6 |
50 |
3.5 |
40 |
28 |
8 |
M10 |
|
JTR47 |
165 |
135 |
24 |
195 |
178 |
115 |
90 |
235 |
170 |
42 |
- |
187 |
13.5 |
30k6 |
60 |
3.5 |
50 |
33 |
8 |
M10 |
|
JTR57 |
165 |
135 |
24 |
200 |
202 |
115 |
100 |
257 |
190 |
55 |
- |
187 |
13.5 |
35k6 |
70 |
7 |
56 |
38 |
10 |
M12 |
|
JTR67 |
195 |
150 |
30 |
235 |
215 |
130 |
100 |
280 |
210 |
60 |
243 |
212 |
14 |
35k6 |
70 |
7 |
56 |
38 |
10 |
M12 |
|
JTR77 |
205 |
170 |
30 |
245 |
235 |
140 |
115 |
300 |
230 |
60 |
269 |
228 |
17.5 |
40k6 |
80 |
5 |
70 |
43 |
12 |
M16 |
|
JTR87 |
260 |
215 |
45 |
310 |
297 |
180 |
140 |
372 |
290 |
75 |
345 |
295 |
17.5 |
50k6 |
100 |
10 |
80 |
53.5 |
14 |
M16 |
|
JTR97 |
310 |
250 |
55 |
365 |
348 |
225 |
160 |
440 |
340 |
90 |
418 |
368 |
22 |
60m6 |
120 |
5 |
110 |
64 |
18 |
M20 |
|
JTR107 |
370 |
290 |
65 |
440 |
409 |
250 |
185 |
495 |
400 |
110 |
475 |
408 |
26 |
70m6 |
140 |
7.5 |
125 |
74.5 |
20 |
M20 |
|
JTR137 |
410 |
340 |
70 |
490 |
458 |
315 |
220 |
589 |
450 |
110 |
562 |
495 |
33 |
90m6 |
170 |
5 |
160 |
95 |
25 |
M24 |
|
JTR147 |
500 |
380 |
80 |
590 |
540 |
355 |
260 |
695 |
530 |
150 |
637 |
565 |
39 |
110m6 |
210 |
15 |
180 |
116 |
28 |
M24 |
|
JTR167 |
580 |
500 |
100 |
670 |
670 |
425 |
270 |
790 |
660 |
160 |
794 |
675 |
39 |
120m6 |
210 |
5 |
200 |
127 |
32 |
M24 | |
|
|
